PROCORE PLUS Slatwall Ultimate Bundle
The Ultimate Bundle comes with 2 boxes of PROCORE PLUS Slatwall (64sq.ft), some of our most popular hooks, shelves and baskets. Everything you need to get your space organized.

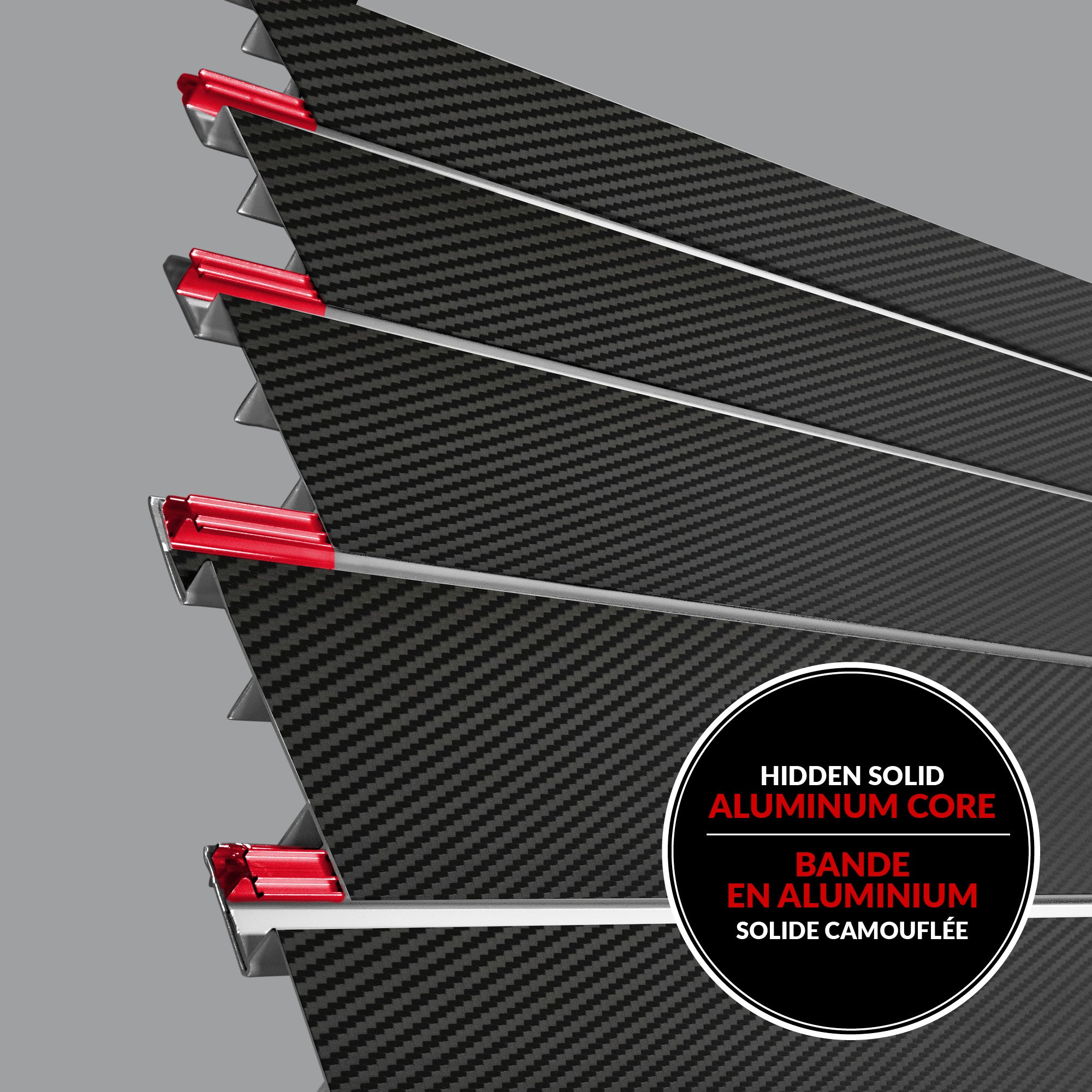

PROCORE PLUS Slatwall provides the strength of PROCORE Slatwall with a stylish carbon fiber finish. Supporting 200 lb/sq ft, the panel features an aluminum core for strength and a laminated PVC body for aesthetics. Designed for 24-inch stud centers. Assembly required.
* PROCORE+ Slatwall and PROCORE+ trims cannot be installed in conjunction with the original PVC Slatwall.
Features:
- Great all-in-one kit to take back your garage
- PROCORE + PVC slatwall holds up to 200 lb. (91 kg) per square foot
- Accessories clip into place and can be moved as often as you like
- Can be installed on one complete wall or separate sections
- Installed directly to studs or over drywall into studs
- Easy to clean wipe with damp cloth or if you installed an entire wall, simply hose it down
- Can run wires behind the panels to give a clean look
- Impact resistant
- Lifetime warranty on panels and 10-year warranty on accessories
- PROCORE PVC Slatwall and PROCORE trims cannot be installed in conjunction with the original PVC Slatwall
Capacity per accessory:
- 4 in. hook: 15 lb. (6.8 kg)
- 8 in. double hook: 40 lb. (18 kg)
- 4 in. double hook: 40 lb. (18 kg)
- Heavy Duty Hook: 50 lb. (22.5 kg)
- U hook: 50 lb. (22.5 kg)
- Metal Shelf: 40 lb. (18 kg)
- Metal Basket: 40 lb. (18 kg)

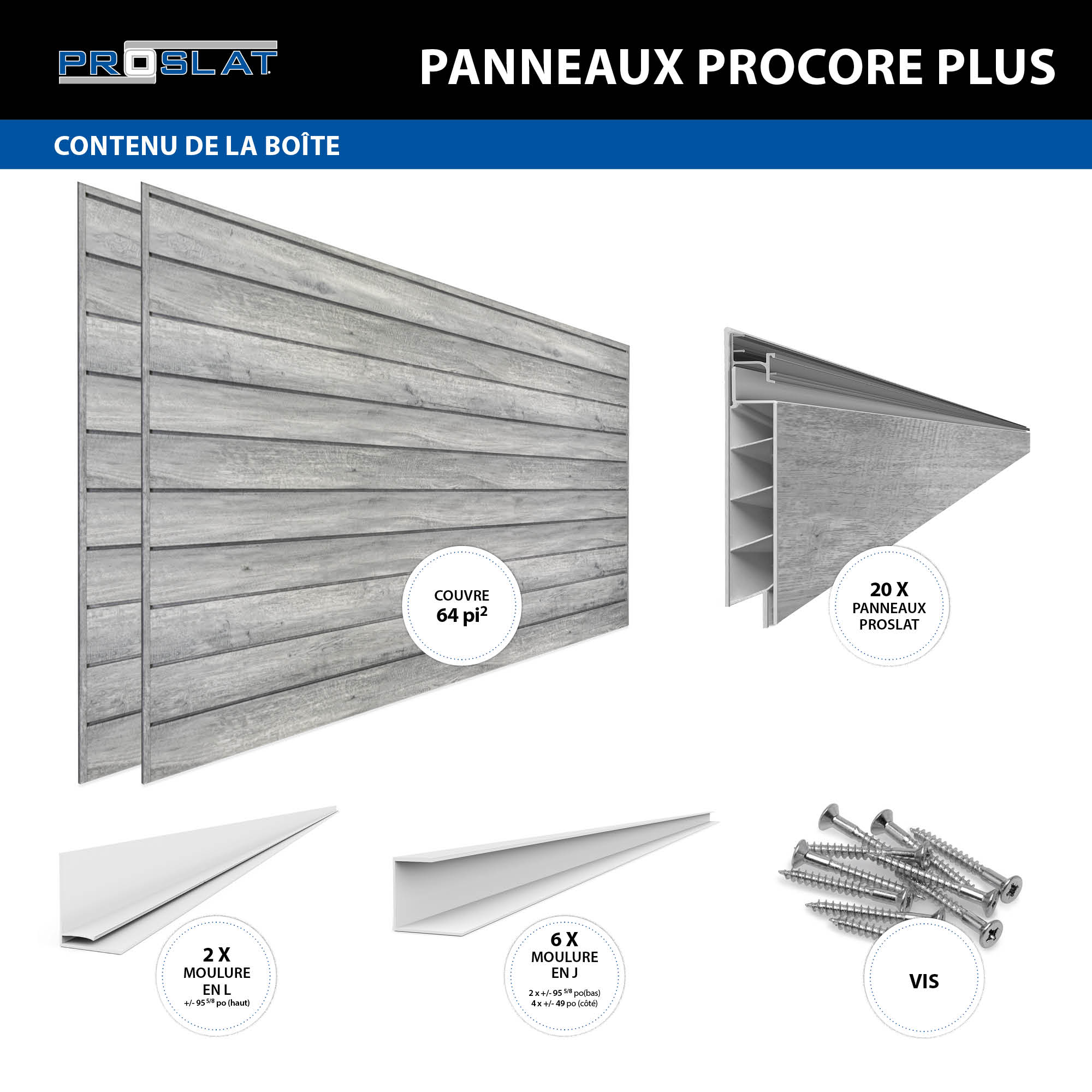

Includes:
2 x PROCORE+ PVC 8 ft. x 4 ft. Slatwall Sections
Each box contains:
- 10 x Single slats when installed make up 8ft W x 4ft H (32 sq.ft)
- 1 x Starter trim (comes in white, and will be concealed once installed)
- 1 x Top trim
- 2 x 49 in. Side trims
- Hardware and instructions
Accessories:
- 12 x 4 in. hooks
- 2 x Double 8 in. hooks
- 2 x Double 4 in. hooks
- 2 x Heavy duty hooks
- 2 x U hooks
- 3 x 24 inch Metal Shelves
- 2 x 12 inch Metal Baskets
Dimensions:
Installed dimensions: 4ft H x 16 ft. or 8 ft. H x 8 ft. W (64sq.ft.)
Total Coverage:
64 sq.ft. (6 sq. m.)
Instructions:
Super
Black Carbon Fiber looks awesome and is solid on the wall.
You have to take time and make sure panels are down all the way or you will have aluminum showing between the slats. I used a soft blow hammer
A little more time consuming than I thought but laser level helped out for the install. I did side wall of garage and small return by 16’ door and around a bank of cabinets suspended on the garage wall.
Thank you for your positive feedback on our Black Carbon Fiber panels! We're happy to hear that you find them solid on the wall and that using a soft blow hammer and laser level was helpful during installation. We truly value your business and hope the panels continue to serve you well in your garage space.
Only half the order arrived. This did turn out to be lost by courier service and ultimately no fault of Proslat.
Was great to actually speak with a human being who was very helpful and reassuring. She did get to the bottom of the issue and made it right....Its not often that "in person" calls for customer service happen....This was a great followup and gotta give props to the lady who provided the great service.
Thanks,
Thank you for sharing your experience with us. We are glad that despite the courier service mishap, our customer service representative was able to assist you effectively and address the issue promptly. We greatly appreciate your understanding and are happy to hear that you found our representative helpful and reassuring. Providing personalized and attentive service is important to us, and we are grateful for your positive feedback. Thank you for choosing Proslat.
You may also like
FAQ
What is the Procore Plus Slatwall weight capacity?
Proslat ProCore Plus Slatwall panels can hold up to an impressive 200 pounds per square foot.
What colors does Procore Plus Slatwall come in?
Procore Plus Slatwall is available in the following finishes Black Carbon Fiber, Silver Carbon Fiber, and Gray Wood.
Is it possible to install Proslat Slatwall on a concrete block wall?
Install Slatwall on concrete or block walls by fastening 2 x 3 in. studs vertically at 16 in. (when using PVC) or 24 in. (when using Procore, Procore+, or Aluminum) using cement screws. Use 1-1⁄2’’ #8 pan head screws (not included) to install the panels.
Does Proslat Slatwall work exclusively with Proslat accessories?
Yes, Proslat Slatwall panels are specifically designed to be compatible with Proslat hooks and accessories. This means that you can confidently use Proslat accessories with Proslat Slatwall panels, ensuring a seamless and secure fit.
What tools are required for Slatwall installation?
The tools needed for installing Slatwall typically include a measuring tape, level, drill, screws (appropriate for the wall type), and a saw for cutting panels, such as a circular saw, jigsaw, or table saw. A circular saw with a fine-toothed blade or a jigsaw with a plastic-cutting blade can provide precise cuts, while a table saw with a high-tooth-count blade can be used for straight cuts.
Can I combine PVC Slatwall with Procore, Procore+ and/or Aluminum Slatwall?
Each category of Slatwall must be installed independently, they are not made to interlock with one another.
What are the recommended cleaning methods for maintaining Proslat panels?
To clean Proslat panels, simply wipe them down with a damp cloth for regular maintenance. For larger cleaning tasks, such as an entire wall installation, the panels can be hosed down with water.
